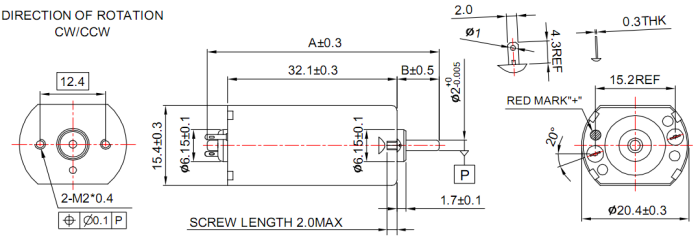

-Motor size: 20.4*15.4*32.1mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-180PA | 3036 | 1.0-2.0 | 1.2 | 5600 | 0.22 | 4100 | 1.1 | 1.86 | 19 | 0.8 | 6.9 | 70 | 3 |
| 2950 | 2.0-3.0 | 2.4 | 8000 | 0.16 | 7400 | 0.49 | 0.98 | 10 | 0.76 | 1.18 | 120 | 4.5 | |
| FF-180SH | 17157 | 3.0-9.0 | 6 | 7500 | 0.07 | 6289 | 0.36 | 2.3 | 23.5 | 1.49 | 14 | 143 | 1.89 |
| FF-180PH | 3334 | 3.0-7.5 | 7 | 33000 | 0.65 | 28062 | 3.7 | 6.2 | 63.2 | 18.11 | 41.2 | 420 | 21 |
