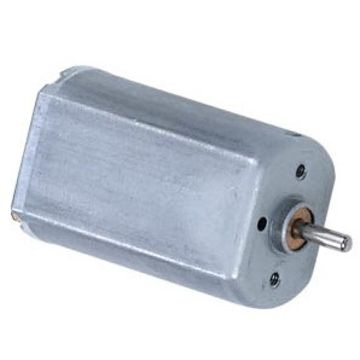

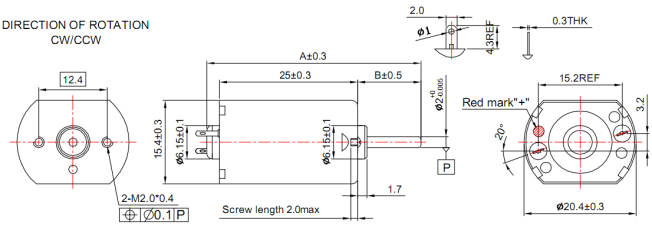

-Motor size: 20.4*15.4*25mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-130PA | 16155 | 2.0-3.0 | 2.3 | 4000 | 0.07 | 2500 | 0.3 | 1.32 | 13.5 | 13.8 | 3.92 | 40 | 0.76 |
| 17145 | 3.0-6.0 | 6 | 11500 | 0.1 | 10000 | 0.39 | 1.27 | 13 | 1.33 | 10 | 102 | 2.3 | |
| FF-130SH | 2356 | 1.5-3.0 | 3 | 12800 | 0.27 | 10337 | 1.13 | 1.9 | 19.4 | 2.08 | 10 | 102 | 4.75 |
| FK-130PH | 07555 | 6.0-9.0 | 7.19 | 2700 | 0.02 | 1999 | 0.05 | 0.8 | 8.16 | 0.17 | 3 | 30.6 | 0.15 |
