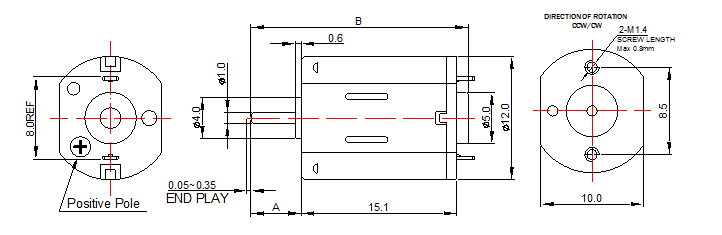

-Motor size: 12*10*15.1mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-N20VA | 05240 | 3.0-12.0 | 3 | 16100 | 0.015 | 12240 | 0.06 | 0.3 | 3 | 0.37 | 1.2 | 12 | 0.21 |
| 08260 | 2.0-5.0 | 5 | 14600 | 0.03 | 11800 | 0.11 | 0.26 | 2.6 | 0.31 | 1.3 | 13 | 0.47 | |
| 08190 | 2.0-4.5 | 3 | 10200 | 0.04 | 8000 | 0.13 | 0.19 | 1.9 | 0.16 | 0.94 | 9.4 | 0.4 | |
