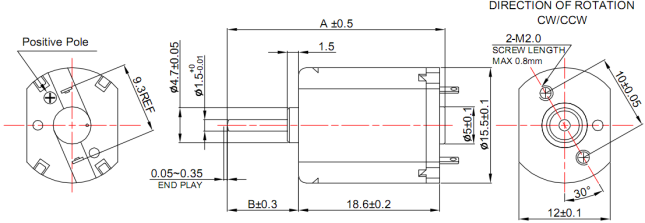

-Motor size: 15.5*12*18.6mm
-Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-030PA | 11155 | 2.0-4.0 | 3 | 7200 | 0.045 | 5500 | 0.17 | 0.49 | 5 | 0.28 | 2.06 | 21 | 0.59 |
| 1592 | 2.0-4.0 | 3.5 | 14300 | 0.09 | 12500 | 0.3 | 0.49 | 5 | 0.64 | 3.92 | 40 | 2 | |
| FF-030PK | 05440 | 3.5-12.0 | 12 | 11000 | 0.02 | 7800 | 0.065 | 0.49 | 5 | 0.4 | 1.67 | 17 | 0.18 |
